Walls & Panels

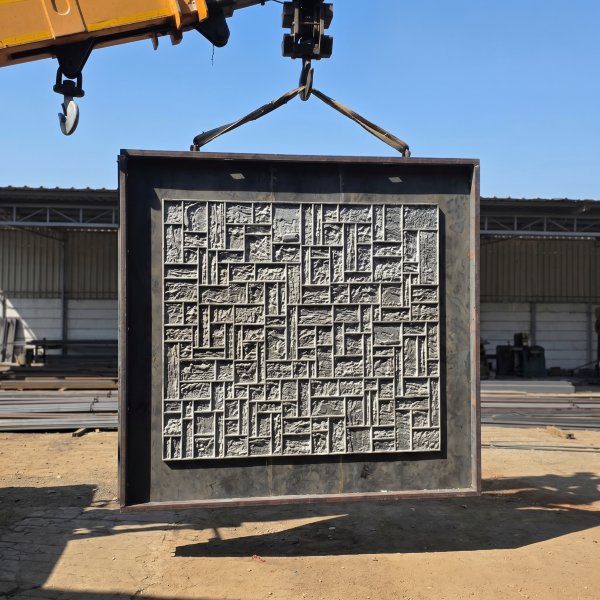

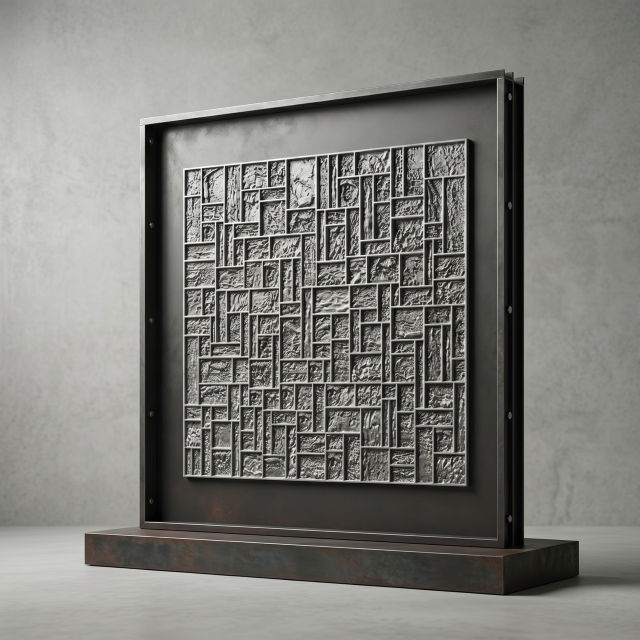

Large-format One Panel Moulds available in five standard sizes from 10ft × 5ft up to 12ft × 10ft. Manufactured in MS Iron or lightweight Aluminium - both produce clean concrete panel faces with fine finishing. The 12ft × 10ft size uses 125mm thickness for additional rigidity; all others use 100mm. Used widely for full-height precast wall panel production in industrial and commercial construction.
Suitable For
- Industrial shed and warehouse wall panel manufacturers
- Commercial building precast contractors
- Prefabricated building component suppliers
- Large-scale housing project contractors
Specifications
Available Sizes
| Size | Note |
|---|---|
| 10ft × 5ft | 100mm | Standard |
| 10ft × 6ft | 100mm | Standard |
| 10ft × 8ft | 100mm | Standard |
| 10ft × 10ft | 100mm | Standard |
| 12ft × 10ft | 125mm | Standard |
| Material | MS Iron (Mild Steel) or Aluminium |
|---|---|
| Finish | Colour coated |
| Plate Thickness | 100mm (standard sizes) | 125mm (12ft × 10ft) |
| Custom Size | Available on request |
| Custom Size Note | Custom panel dimensions and decorative profile designs available on request. Specify material preference (MS or Aluminium) when enquiring. |
| Material Options | MS Iron or Aluminium |
