Civil / Infrastructure

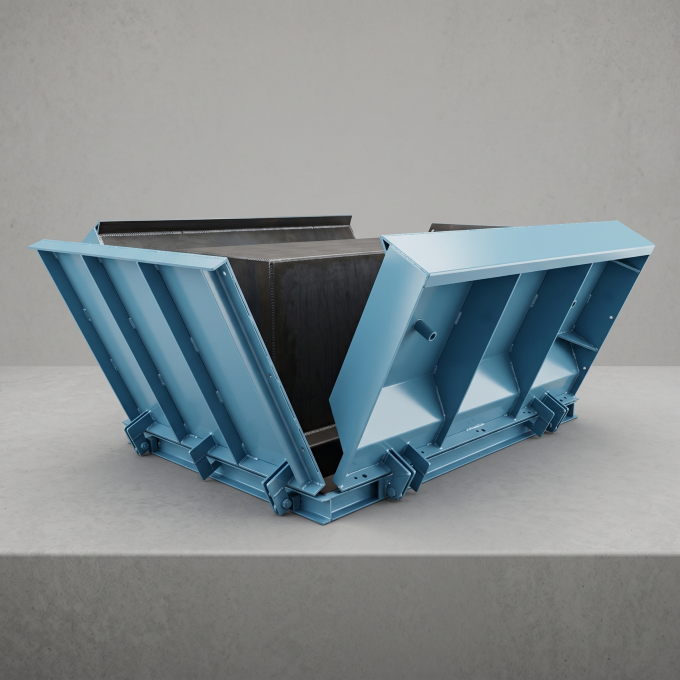

U-Drain Moulds for casting precast RCC U-shaped drainage channels used along roadsides, in agricultural fields, and for stormwater management. Available in five standard sizes from 350mm to 1000mm with 2000mm standard casting length. MS Iron construction with grey coating ensures durability under repeated use. Plate thickness options of 5mm or 6mm allow selection based on drainage load requirements.
Suitable For
- Roadside drainage and stormwater contractors
- Agricultural and irrigation drainage projects
- Municipal road drainage works
- Precast RCC drain manufacturers
Specifications
Available Sizes
| Size | Note |
|---|---|
| 350mm × 350mm × 2000mm | Standard |
| 450mm × 450mm | Custom length |
| 600mm × 600mm × 2000mm | Standard |
| 750mm × 750mm | Custom length |
| 1000mm × 1000mm × 2000mm | Standard |
| Material | MS Iron (Mild Steel) |
|---|---|
| Finish | Grey colour coated |
| Plate Thickness | 5mm or 6mm plate (custom also available) |
| Custom Size | Available on request |
| Custom Size Note | Custom width, depth, length and plate thickness available. 450mm and 750mm sizes are made to custom length - specify your requirement. |
| Standard Length | 2000mm |
| Plate Options | 5mm / 6mm / Custom |
